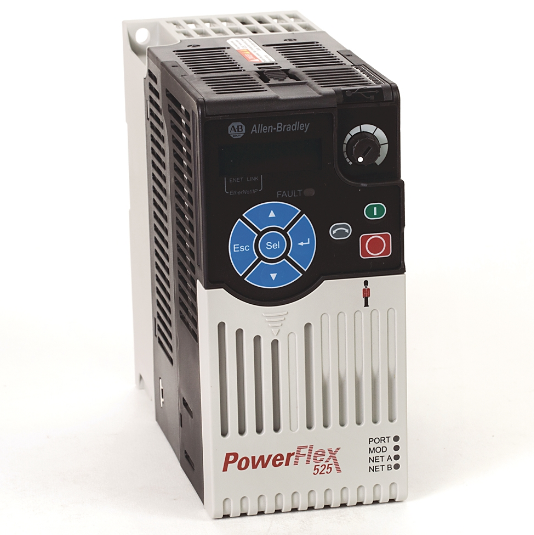

PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-D010N104
| Technical specifications for 25B-D010N104 | |
| Manufacturer | Allen Bradley |
| Product Type | Adjustable Frequency AC Drive |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D010N104 |
| UPC | 884951885912 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 10.5 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 13.8 A |
| Output Voltage | 0-460VAC |
| Output Power | 4.0 kW (5.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | Ethernet I/P |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame B |
| EMC Filtering Options | No Filter |
| Voltage | Three Phase, 480V AC |
| Communication | Ethernet/IP, RS-485 |
