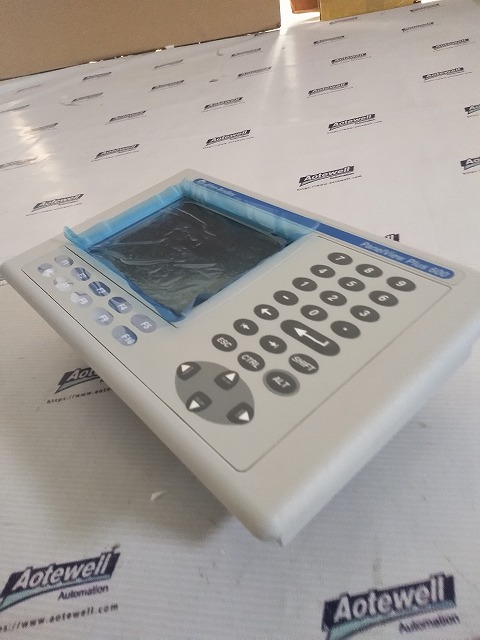

2711P-K4M5D8
PanelView Plus 6 4 Gray Key DC RS232
2711 PanelView Plus 6 Terminal, 400 Model, Keypad, Grayscale, RS-232 Communication Only, DC Input
| Technical specifications for 2711P-K4M5D8 | |
| Manufacturer | Rockwell Automation |
| Backlight | 25,000 hr LED backlight life |
| Display Size | 3.5 inches |
| Part Number/Catalog No. | 2711P-K4M5D8 |
| Brand | Allen-Bradley |
| Product Family: | PanelView Plus 6 400 Operator Terminals |
| Product Type: | Operator Terminals |
| Keypad function keys: | 8 function keys (F1…F8) |
| Display Type: | Grayscale TFT LCD |
| Lifecycle status: | Active |
| Display Area: | 70 x 53 mm (2.8 x 2.3 in.) |
| Resolution: | 320 x 240, 16-levels gray |
| Internal memory: | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports: | Ethernet, RS-232, 2 USB host |
| Input Voltage range: | 18-30VDC |
| Product Line | Panelview 6 Plus |
| Display Color | Monochrome |
| Input Type | Keypad |
| Communication | RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 5 lbs. |
| Shipping Dimensions | 14 x 11 x 8 in |
