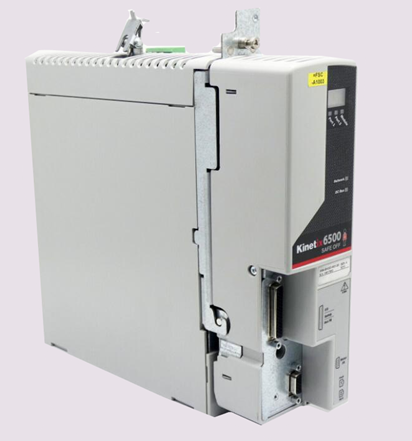

2094, Kinetix 6200 / 6500 Modular Multi-axis Servo Drive
2094-BM01-M
| PRODUCT SELECTION | |
|---|---|
| Product Line | Kinetix 6200 |
| Input Voltage | 460V AC, 50/60Hz |
| Power Module | Axis Module |
| Converter Power Rating | None |
| Inverter Current Rating | 9A (460V Input Voltage) |
| Additional Information | |
| Wattage | 3.9 kW |
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6200 |
| Part Number | 2094-BM01-M |
| UPC | 884951092532 |
| Weight | 6.19 lbs (2.81 kg) |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Product Description | Integrated Axis Module |
| Continuous Output Current | 6.1 A |
| Peak Current | 8.6 A |
| Continuous power out (nom) | 3.9 kW |
| Power Dissipation | 57-126 Watts |
| Voltage Class | 400V |
| Efficiency | 98% |
| Internal Shunt continuous power | 50W |
| Internal shunt peak power | 5.6 kW |
| Operating Temperature | 32-122 F (0-50 C) |
| Output Current | 9 Amperes |
| Power Module | Axis Module |
| Max Bus Capacitance | N/A |
| Wattage | 3.9 kWatts |
| Voltage Rating | 460 Volt (AC) |
