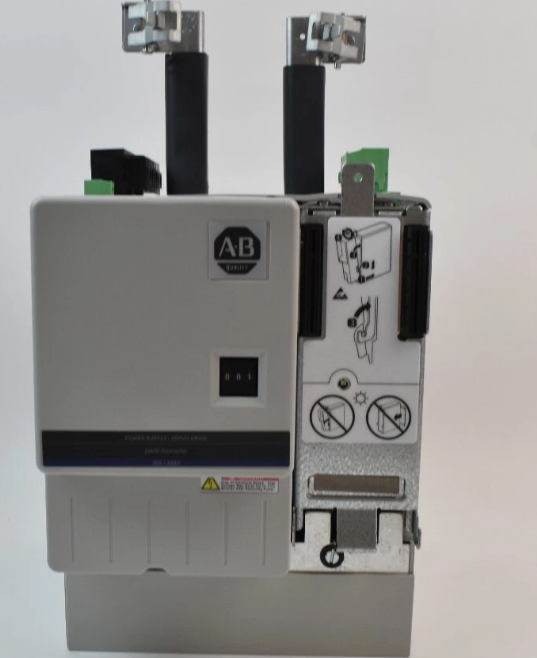

2094-BC04-M03-M — Kinetix 6200/6500 Integrated Module
Power Module, Integrated, 460V, 28kW Conv. 30A Inv.,
| Technical specifications for 2094-BC04-M03-M | |
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6200 |
| Part Number | 2094-BC04-M03-M |
| UPC | 884951147799 |
| Weight | 22.00 lbs (9.98 kg) |
| Operating Temperature | 32-122 F (0-50 C) |
| Continuous power output to bus | 27.6kW |
| Continuous output current to bus | 41.5 A |
| AC input Voltage | 324…528V rms,three-phase (360…480V nom) |
| Control Voltage | 95…264V rmss, ingle-phase (110…240V rms nom) |
| Bus overvoltage | 825V DC |
| Bus undervoltage | 275V DC |
| Power Dissipation range | 94-255 Watts |
| Installation Clearance | 50.8 mm (2.0 in.) |
| Minimum Enclosure Depth | 272 mm (10.7 in.) |
| Control Input Fuse | FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) |
| Control Input Breaker | 1492-SPM2D060 or 1492-SPM1D150 |
| DC Bus Power Fuse | Bussmann Fuse : WJ-20A14F Mersen: DCT20-2; HSJ20 |
| Max Bus Capacitance | 8955 Microfarads |
| Power Module | Integrated Axis Module |
| Output Current | 30 Amperes |
| Voltage Rating | 460 Volt (AC) |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Wattage | 13 kWatts |
