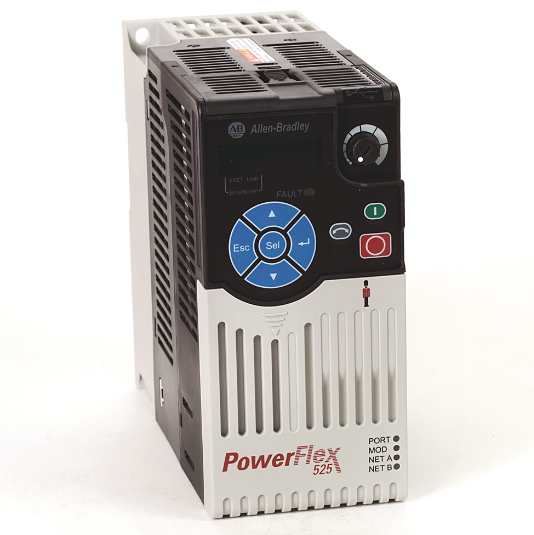

PowerFlex 525 Drive, Variable, 380-480VAC, 0.4kW, 0.5HP, 1.4A, Normal & Heavy Duty
25B-D1P4N104
| Technical specifications for 25B-D1P4N104 | |
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D1P4N104 |
| UPC | 884951885868 |
| Weight | 2.06 lbs (0.94 kg) |
| Output Current | 1.4 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 1.9 A |
| Output Voltage | 0-460VAC |
| Output Power | 0.4 kW (0.5 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | Ethernet I/P |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
