1769-HSC

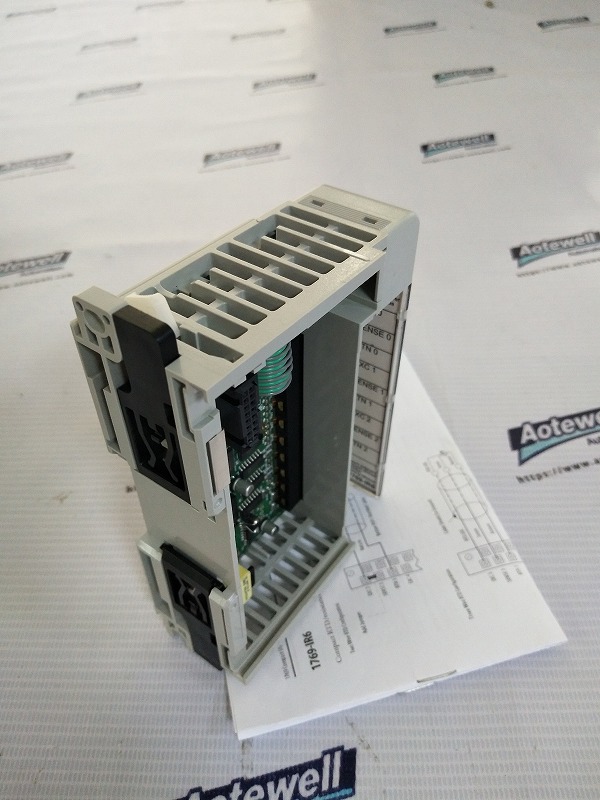

CompactLogix High-Speed Counter Module
2/4 Channel High Speed Counter/Encoder Module
| Technical specifications for 1769-HSC | |
| Manufacturer | Allen Bradley |
| Product Type | Counter Module |
| Product Line | CompactLogix |
| Part Number | 1769-HSC |
| UPC | 612598286201 |
| Weight | 0.44 lbs (0.20 kg) |
| Operating Temperature | 0-60 Degree Celsius |
| No. of Inputs | 2 quadrature (ABZ) differential inputs |
| No. of Outputs | 16 total, 4 physical and 12 virtual |
| On-State Current | 1 A per point; 4 A per module |
| Bus Current Draw @ 5.14Vdc | 425 mA |
| Bus Current Draw @ 24Vdc | 0 mA |
| Power Supply Distance Rating | Module cannot be more than four modules away from a system power supply |
| Module Type | High Speed Counter Module |
| Enclosure Type | Open |
| Maximum Bus Current Draw | 5 mA at 5 Volts DC |
